Model Name

Helix OC

Go to list of items

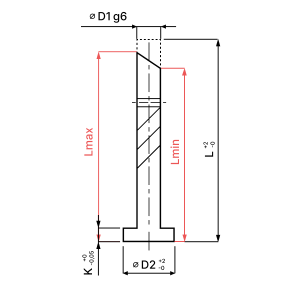

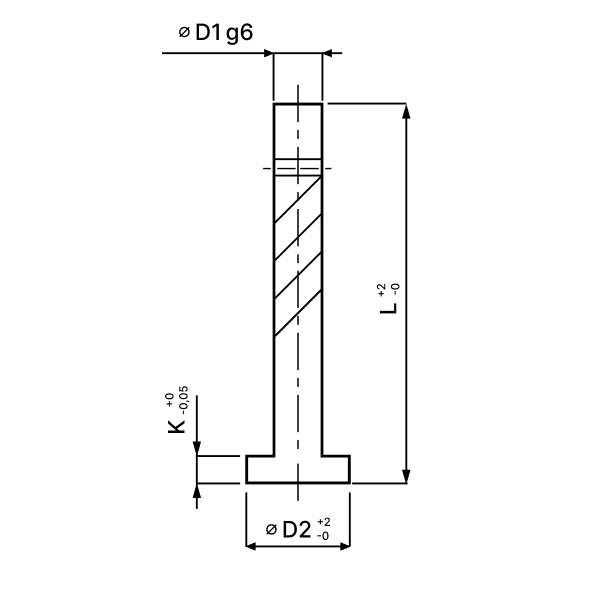

Helix Pin OC

Helix Pin OC

Order CodeD1D2KLLmaxLmin
Clear filters
HXPOC-2x100/100/100 2 4 2100100 100
HXPOC-2x125/125/125 2 4 2125125 125
HXPOC-2x160/160/160 2 4 2160160 160
HXPOC-2x200/200/200 2 4 2200200 200
HXPOC-2x250/250/250 2 4 2250250 250
HXPOC-2x315/315/315 2 4 2315315 315
HXPOC-2.2x100/100/100 2.2 5 2100100 100
HXPOC-2.2x125/125/125 2.2 5 2125125 125
HXPOC-2.2x160/160/160 2.2 5 2160160 160
HXPOC-2.2x200/200/200 2.2 5 2200200 200
HXPOC-2.2x250/250/250 2.2 5 2250250 250
HXPOC-2.2x315/315/315 2.2 5 2315315 315
HXPOC-2.5x100/100/100 2.5 5 2100100 100
HXPOC-2.5x125/125/125 2.5 5 2125125 125
HXPOC-2.5x160/160/160 2.5 5 2160160 160
HXPOC-2.5x200/200/200 2.5 5 2200200 200
HXPOC-2.5x250/250/250 2.5 5 2250250 250
HXPOC-2.5x315/315/315 2.5 5 2315315 315
HXPOC-3x100/100/100 3 6 3100100 100
HXPOC-3x125/125/125 3 6 3125125 125
HXPOC-3x160/160/160 3 6 3160160 160
HXPOC-3x200/200/200 3 6 3200200 200
HXPOC-3x250/250/250 3 6 3250250 250
HXPOC-3x315/315/315 3 6 3315315 315
HXPOC-3x400/400/400 3 6 3400400 400
HXPOC-3x500/500/500 3 6 3500500 500
HXPOC-3.2x100/100/100 3.2 6 3100100 100
HXPOC-3.2x125/125/125 3.2 6 3125125 125
HXPOC-3.2x160/160/160 3.2 6 3160160 160
HXPOC-3.2x200/200/200 3.2 6 3200200 200
HXPOC-3.2x250/250/250 3.2 6 3250250 250
HXPOC-3.2x315/315/315 3.2 6 3315315 315
HXPOC-3.2x400/400/400 3.2 6 3400400 400
HXPOC-3.5x100/100/100 3.5 7 3100100 100
HXPOC-3.5x125/125/125 3.5 7 3125125 125
HXPOC-3.5x160/160/160 3.5 7 3160160 160
HXPOC-3.5x200/200/200 3.5 7 3200200 200
HXPOC-3.5x250/250/250 3.5 7 3250250 250
HXPOC-3.5x315/315/315 3.5 7 3315315 315
HXPOC-3.5x400/400/400 3.5 7 3400400 400
HXPOC-4x100/100/100 4 8 3100100 100
HXPOC-4x125/125/125 4 8 3125125 125
HXPOC-4x160/160/160 4 8 3160160 160
HXPOC-4x200/200/200 4 8 3200200 200
HXPOC-4x250/250/250 4 8 3250250 250
HXPOC-4x315/315/315 4 8 3315315 315
HXPOC-4x400/400/400 4 8 3400400 400
HXPOC-4x500/500/500 4 8 3500500 500
HXPOC-4x630/630/630 4 8 3630630 630
HXPOC-4.2x100/100/100 4.2 8 3100100 100
HXPOC-4.2x125/125/125 4.2 8 3125125 125
HXPOC-4.2x160/160/160 4.2 8 3160160 160
HXPOC-4.2x200/200/200 4.2 8 3200200 200
HXPOC-4.2x250/250/250 4.2 8 3250250 250
HXPOC-4.2x315/315/315 4.2 8 3315315 315
HXPOC-4.2x400/400/400 4.2 8 3400400 400
HXPOC-4.2x500/500/500 4.2 8 3500500 500
HXPOC-4.5x100/100/100 4.5 8 3100100 100
HXPOC-4.5x125/125/125 4.5 8 3125125 125
HXPOC-4.5x160/160/160 4.5 8 3160160 160
HXPOC-4.5x200/200/200 4.5 8 3200200 200
HXPOC-4.5x250/250/250 4.5 8 3250250 250
HXPOC-4.5x315/315/315 4.5 8 3315315 315
HXPOC-4.5x400/400/400 4.5 8 3400400 400
HXPOC-4.5x500/500/500 4.5 8 3500500 500
HXPOC-4.5x630/630/630 4.5 8 3630630 630
HXPOC-5x100/100/100 5 10 3100100 100
HXPOC-5x125/125/125 5 10 3125125 125
HXPOC-5x160/160/160 5 10 3160160 160
HXPOC-5x200/200/200 5 10 3200200 200
HXPOC-5x250/250/250 5 10 3250250 250
HXPOC-5x315/315/315 5 10 3315315 315
HXPOC-5x400/400/400 5 10 3400400 400
HXPOC-5x500/500/500 5 10 3500500 500
HXPOC-5x630/630/630 5 10 3630630 630
HXPOC-5x800/800/800 5 10 3800800 800
HXPOC-5.2x100/100/100 5.2 10 3100100 100
HXPOC-5.2x125/125/125 5.2 10 3125125 125
HXPOC-5.2x160/160/160 5.2 10 3160160 160
HXPOC-5.2x200/200/200 5.2 10 3200200 200
HXPOC-5.2x250/250/250 5.2 10 3250250 250
HXPOC-5.2x315/315/315 5.2 10 3315315 315
HXPOC-5.2x400/400/400 5.2 10 3400400 400
HXPOC-5.2x500/500/500 5.2 10 3500500 500
HXPOC-5.5x100/100/100 5.5 10 3100100 100
HXPOC-5.5x125/125/125 5.5 10 3125125 125
HXPOC-5.5x160/160/160 5.5 10 3160160 160
HXPOC-5.5x200/200/200 5.5 10 3200200 200
HXPOC-5.5x250/250/250 5.5 10 3250250 250
HXPOC-5.5x315/315/315 5.5 10 3315315 315
HXPOC-5.5x400/400/400 5.5 10 3400400 400
HXPOC-5.5x500/500/500 5.5 10 3500500 500
HXPOC-6x100/100/100 6 12 5100100 100
HXPOC-6x125/125/125 6 12 5125125 125
HXPOC-6x160/160/160 6 12 5160160 160
HXPOC-6x200/200/200 6 12 5200200 200
HXPOC-6x250/250/250 6 12 5250250 250
HXPOC-6x315/315/315 6 12 5315315 315
HXPOC-6x400/400/400 6 12 5400400 400
HXPOC-6x500/500/500 6 12 5500500 500
HXPOC-6x630/630/630 6 12 5630630 630
HXPOC-6x800/800/800 6 12 5800800 800
HXPOC-6x1000/1000/1000 6 12 510001000 1000
HXPOC-6.2x100/100/100 6.2 12 5100100 100
HXPOC-6.2x125/125/125 6.2 12 5125125 125
HXPOC-6.2x160/160/160 6.2 12 5160160 160
HXPOC-6.2x200/200/200 6.2 12 5200200 200
HXPOC-6.2x250/250/250 6.2 12 5250250 250
HXPOC-6.2x315/315/315 6.2 12 5315315 315
HXPOC-6.2x400/400/400 6.2 12 5400400 400
HXPOC-6.2x500/500/500 6.2 12 5500500 500
HXPOC-6.5x100/100/100 6.5 12 5100100 100
HXPOC-6.5x125/125/125 6.5 12 5125125 125
HXPOC-6.5x160/160/160 6.5 12 5160160 160
HXPOC-6.5x200/200/200 6.5 12 5200200 200
HXPOC-6.5x250/250/250 6.5 12 5250250 250
HXPOC-6.5x315/315/315 6.5 12 5315315 315
HXPOC-6.5x400/400/400 6.5 12 5400400 400
HXPOC-6.5x500/500/500 6.5 12 5500500 500
HXPOC-7x100/100/100 7 12 5100100 100
HXPOC-7x125/125/125 7 12 5125125 125
HXPOC-7x160/160/160 7 12 5160160 160
HXPOC-7x200/200/200 7 12 5200200 200
HXPOC-7x250/250/250 7 12 5250250 250
HXPOC-7x315/315/315 7 12 5315315 315
HXPOC-7x400/400/400 7 12 5400400 400
HXPOC-7x500/500/500 7 12 5500500 500
HXPOC-7.5x100/100/100 7.5 12 5100100 100
HXPOC-7.5x125/125/125 7.5 12 5125125 125
HXPOC-7.5x160/160/160 7.5 12 5160160 160
HXPOC-7.5x200/200/200 7.5 12 5200200 200
HXPOC-7.5x250/250/250 7.5 12 5250250 250
HXPOC-7.5x315/315/315 7.5 12 5315315 315
HXPOC-7.5x400/400/400 7.5 12 5400400 400
HXPOC-7.5x500/500/500 7.5 12 5500500 500
HXPOC-8x100/100/100 8 14 5100100 100
HXPOC-8x125/125/125 8 14 5125125 125
HXPOC-8x160/160/160 8 14 5160160 160
HXPOC-8x200/200/200 8 14 5200200 200
HXPOC-8x250/250/250 8 14 5250250 250
HXPOC-8x315/315/315 8 14 5315315 315
HXPOC-8x400/400/400 8 14 5400400 400
HXPOC-8x500/500/500 8 14 5500500 500
HXPOC-8x630/630/630 8 14 5630630 630
HXPOC-8x800/800/800 8 14 5800800 800
HXPOC-8x1000/1000/1000 8 14 510001000 1000
HXPOC-8.2x100/100/100 8.2 14 5100100 100
HXPOC-8.2x125/125/125 8.2 14 5125125 125
HXPOC-8.2x160/160/160 8.2 14 5160160 160
HXPOC-8.2x200/200/200 8.2 14 5200200 200
HXPOC-8.2x250/250/250 8.2 14 5250250 250
HXPOC-8.2x315/315/315 8.2 14 5315315 315
HXPOC-8.2x400/400/400 8.2 14 5400400 400
HXPOC-8.2x500/500/500 8.2 14 5500500 500
HXPOC-8.2x630/630/630 8.2 14 5630630 630
HXPOC-8.5x100/100/100 8.5 14 5100100 100
HXPOC-8.5x125/125/125 8.5 14 5125125 125
HXPOC-8.5x160/160/160 8.5 14 5160160 160
HXPOC-8.5x200/200/200 8.5 14 5200200 200
HXPOC-8.5x250/250/250 8.5 14 5250250 250
HXPOC-8.5x315/315/315 8.5 14 5315315 315
HXPOC-8.5x400/400/400 8.5 14 5400400 400
HXPOC-8.5x500/500/500 8.5 14 5500500 500
HXPOC-8.5x630/630/630 8.5 14 5630630 630
HXPOC-9x100/100/100 9 14 5100100 100
HXPOC-9x125/125/125 9 14 5125125 125
HXPOC-9x160/160/160 9 14 5160160 160
HXPOC-9x200/200/200 9 14 5200200 200
HXPOC-9x250/250/250 9 14 5250250 250
HXPOC-9x315/315/315 9 14 5315315 315
HXPOC-9x400/400/400 9 14 5400400 400
HXPOC-9x500/500/500 9 14 5500500 500
HXPOC-9x630/630/630 9 14 5630630 630
HXPOC-10x100/100/100 10 16 5100100 100
HXPOC-10x125/125/125 10 16 5125125 125
HXPOC-10x160/160/160 10 16 5160160 160
HXPOC-10x200/200/200 10 16 5200200 200
HXPOC-10x250/250/250 10 16 5250250 250
HXPOC-10x315/315/315 10 16 5315315 315
HXPOC-10x400/400/400 10 16 5400400 400
HXPOC-10x500/500/500 10 16 5500500 500
HXPOC-10x630/630/630 10 16 5630630 630
HXPOC-10x800/800/800 10 16 5800800 800
HXPOC-10x1000/1000/1000 10 16 510001000 1000
HXPOC-10.2x100/100/100 10.2 16 5100100 100
HXPOC-10.2x125/125/125 10.2 16 5125125 125
HXPOC-10.2x160/160/160 10.2 16 5160160 160
HXPOC-10.2x200/200/200 10.2 16 5200200 200
HXPOC-10.2x250/250/250 10.2 16 5250250 250
HXPOC-10.2x315/315/315 10.2 16 5315315 315
HXPOC-10.2x400/400/400 10.2 16 5400400 400
HXPOC-10.2x500/500/500 10.2 16 5500500 500
HXPOC-10.2x630/630/630 10.2 16 5630630 630
HXPOC-10.5x100/100/100 10.5 16 5100100 100
HXPOC-10.5x125/125/125 10.5 16 5125125 125
HXPOC-10.5x160/160/160 10.5 16 5160160 160
HXPOC-10.5x200/200/200 10.5 16 5200200 200
HXPOC-10.5x250/250/250 10.5 16 5250250 250
HXPOC-10.5x315/315/315 10.5 16 5315315 315
HXPOC-10.5x400/400/400 10.5 16 5400400 400
HXPOC-10.5x500/500/500 10.5 16 5500500 500
HXPOC-10.5x630/630/630 10.5 16 5630630 630
HXPOC-11x100/100/100 11 16 5100100 100
HXPOC-11x125/125/125 11 16 5125125 125
HXPOC-11x160/160/160 11 16 5160160 160
HXPOC-11x200/200/200 11 16 5200200 200
HXPOC-11x250/250/250 11 16 5250250 250
HXPOC-11x315/315/315 11 16 5315315 315
HXPOC-11x400/400/400 11 16 5400400 400
HXPOC-11x500/500/500 11 16 5500500 500
HXPOC-11x630/630/630 11 16 5630630 630
HXPOC-12x100/100/100 12 20 7100100 100
HXPOC-12x125/125/125 12 20 7125125 125
HXPOC-12x160/160/160 12 20 7160160 160
HXPOC-12x200/200/200 12 20 7200200 200
HXPOC-12x250/250/250 12 20 7250250 250
HXPOC-12x315/315/315 12 20 7315315 315
HXPOC-12x400/400/400 12 20 7400400 400
HXPOC-12x500/500/500 12 20 7500500 500
HXPOC-12x630/630/630 12 20 7630630 630
HXPOC-12x800/800/800 12 20 7800800 800
HXPOC-12x1000/1000/1000 12 20 710001000 1000
HXPOC-12.5x100/100/100 12.5 18 7100100 100
HXPOC-12.5x125/125/125 12.5 18 7125125 125
HXPOC-12.5x160/160/160 12.5 18 7160160 160
HXPOC-12.5x200/200/200 12.5 18 7200200 200
HXPOC-12.5x250/250/250 12.5 18 7250250 250
HXPOC-12.5x315/315/315 12.5 18 7315315 315
HXPOC-12.5x400/400/400 12.5 18 7400400 400
HXPOC-12.5x500/500/500 12.5 18 7500500 500
HXPOC-12.5x630/630/630 12.5 18 7630630 630
HXPOC-14x100/100/100 14 22 7100100 100
HXPOC-14x125/125/125 14 22 7125125 125
HXPOC-14x160/160/160 14 22 7160160 160
HXPOC-14x200/200/200 14 22 7200200 200
HXPOC-14x250/250/250 14 22 7250250 250
HXPOC-14x315/315/315 14 22 7315315 315
HXPOC-14x400/400/400 14 22 7400400 400
HXPOC-14x500/500/500 14 22 7500500 500
HXPOC-14x630/630/630 14 22 7630630 630
HXPOC-14x800/800/800 14 22 7800800 800
HXPOC-14x1000/1000/1000 14 22 710001000 1000
HXPOC-16x100/100/100 16 22 7100100 100
HXPOC-16x125/125/125 16 22 7125125 125
HXPOC-16x160/160/160 16 22 7160160 160
HXPOC-16x200/200/200 16 22 7200200 200
HXPOC-16x250/250/250 16 22 7250250 250
HXPOC-16x315/315/315 16 22 7315315 315
HXPOC-16x400/400/400 16 22 7400400 400
HXPOC-16x500/500/500 16 22 7500500 500
HXPOC-16x630/630/630 16 22 7630630 630
HXPOC-16x800/800/800 16 22 7800800 800
HXPOC-16x1000/1000/1000 16 22 710001000 1000
HXPOC-18x100/100/100 18 24 7100100 100
HXPOC-18x125/125/125 18 24 7125125 125
HXPOC-18x160/160/160 18 24 7160160 160
HXPOC-18x200/200/200 18 24 7200200 200
HXPOC-18x250/250/250 18 24 7250250 250
HXPOC-18x315/315/315 18 24 7315315 315
HXPOC-18x400/400/400 18 24 7400400 400
HXPOC-18x500/500/500 18 24 7500500 500
HXPOC-18x630/630/630 18 24 7630630 630
HXPOC-18x800/800/800 18 24 7800800 800
HXPOC-18x1000/1000/1000 18 24 710001000 1000
HXPOC-20x100/100/100 20 26 8100100 100
HXPOC-20x125/125/125 20 26 8125125 125
HXPOC-20x160/160/160 20 26 8160160 160
HXPOC-20x200/200/200 20 26 8200200 200
HXPOC-20x250/250/250 20 26 8250250 250
HXPOC-20x315/315/315 20 26 8315315 315
HXPOC-20x400/400/400 20 26 8400400 400
HXPOC-20x500/500/500 20 26 8500500 500
HXPOC-20x630/630/630 20 26 8630630 630
HXPOC-20x800/800/800 20 26 8800800 800
HXPOC-20x1000/1000/1000 20 26 810001000 1000
HXPOC-25x100/100/100 25 32 10100100 100
HXPOC-25x125/125/125 25 32 10125125 125
HXPOC-25x160/160/160 25 32 10160160 160
HXPOC-25x200/200/200 25 32 10200200 200
HXPOC-25x250/250/250 25 32 10250250 250
HXPOC-25x315/315/315 25 32 10315315 315
HXPOC-25x400/400/400 25 32 10400400 400
HXPOC-25x500/500/500 25 32 10500500 500
HXPOC-25x630/630/630 25 32 10630630 630
HXPOC-25x800/800/800 25 32 10800800 800
HXPOC-25x1000/1000/1000 25 32 1010001000 1000
Item was not found
Go to list of items
View basket
